Herramientas de mano

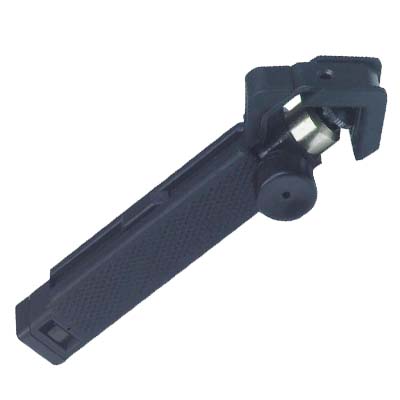

• Cable stripper for outer jackets & insulations from 0.18 to 1.12 inches (4.5 to 28.5 mm) O.D.
• Stripping action is both circumferential, then longitudinal for removal of insulation section at the end or mid span of wires
• Adjustable depth up to 0.12 inch (3 mm) cutting depth
• Spherical blade for softer insulation is standard; chisel point blade for harder coverings is optional
• MK02 has handy spring-loaded hook ripping blade at base of tool to facilitate insulation removal
• MK02M functions the same as the MK02 but does not contain the spring-loaded hook ripping blade
• Solid construction for rugged applications
• Stripping Capacity – 0.18 to 1.12 inches (4.5 to 28.5mm) O.D.

Length: 5.27 in (135.00 mm)
Height: 1.56 in (40.00 mm)
Width: 0.585 in (15.00 mm)
Weight: 4.2 ounces (120.0g)

• Removes Variety of Jackets and Insulation Materials
• Provides Circumferential, Longitudinal and Spiral Cuts
• F1-114 Strips 4.5mm to 29mm Cable
• F1-158 Strips 19mm to 40mm Cable
• Spring-Loaded Cable Brace
• Replacement Blades Available

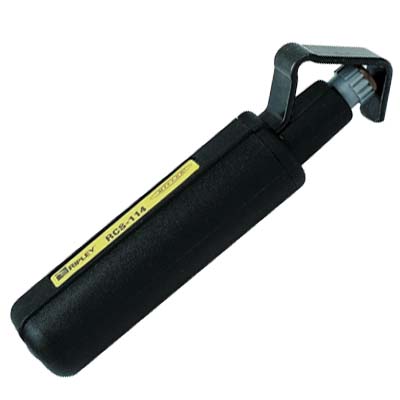

These Miller Fiber Optic Cable Slitters are manually operated cutting devices that enable you to achieve fast, safe and precise jacket removal of PE, PVC and rubber jacket. These Fiber Optic Cable Slitters are ideal for slitting and stripping fiber optic cable, providing circumferential, longitudinal and spiral cuts for easy removal of the fiber optic cable jacket.

These fiber optic cable slitters have a spring-loaded cable brace that holds the fiber optic cable to the blade for easy, controlled cutting. The stripper fits comfortably in your hand and provides you with a firm grip during use. The slitting blades are designed for long life and replacement blades are available.

Two models are available. The F1-114 strips cables from 4.5mm to 29mm diameter. The F1-158 strips cables from 19mm to 40mm diameter.

Also see our other fiber optic tools and supplies for fiber optic splicing and termination. These include fiber optic cleavers, fusion splicers and mechanical splices. Cable preparation supplies include fiber optic stripping tools, alcohol wipes, Kim Wipes, icky pic removers, solvents, and more.

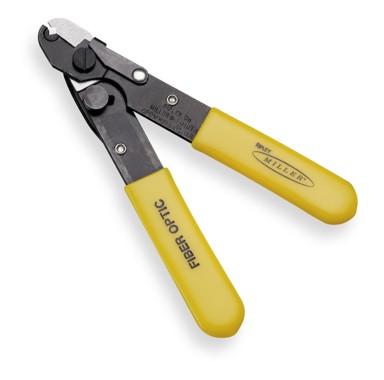

• For stripping 250 micron buffer coating to expose 125 micron cladded fiber
• Second hole for stripping 2-3mm fiber jackets
• 140 µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
• Pre-set at the factory – no adjustments needed
• Will not scratch or nick glass fiber
• All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
• Comfort-grip, ergonomic handles
• Lock to hold tool closed when it is not in use
• Made in the USA
• Part No.: 46107

Length: 6.44 in (165.00 mm)
Weight: 4.17 ounces (119.0g)

• For stripping 250 micron buffer coating from 125 micron optical fiber
• Precision diameter hole & V-opening in blade allow for accurate buffer coating removal
• Factory set, requires no adjustment
• Prevents scratching or nicking of optical fiber
• All cutting surfaces are precision formed, hardened, tempered and ground assuring precise buffer removal
• Made in USA

Length: 5.32 in (136.53 mm)
Weight: 2.49 ounces (71.0g)

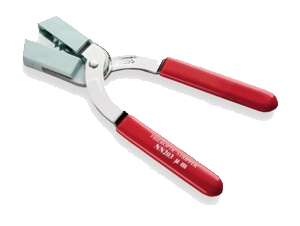

• 22 different No-Nik tools in size ranging from 102 to 1,372 microns
• Accurate to -0 mm to +.0127 mm
• Exclusive centering device positions fiber for precise scoring and removal of buffer coating
• Razor-sharp blades score buffer without cutting through it
• Color-coded, cushion-grip handles for quick identification
• Plastic heads, which make contact only with the Buffer, center and support your work on both sides
• Cutting blades made from razor quality steel score the Buffer completely
• Back-up blades support the cutting blades, nest positively, and «lock up» when the tool is closed to maintain perfect concentricity
• Buffer being removed acts as guide and protection for the fiber
• Stripping blade diameter clearly market on plastic head
• Arrow indicates direction pressure should be applied when stripping

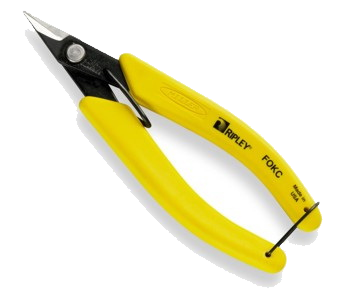

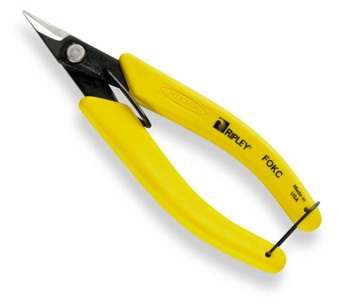

• Designed to cut Kevlar® strength members in fiber optic cables
• Powerful quick cutting action
• Full serrated edge for consistent, fast and clean cuts
• Lightweight and compact
• Return spring designed for precise repeated cuts
• Ergonomic handles with cushioned non-slip grips
• Made of high carbon steel specially treated for long life and trouble free cuts
• Made in the USA

Length: 5.69 in (146.00 mm)
Weight: 2.52 ounces (72.0g)

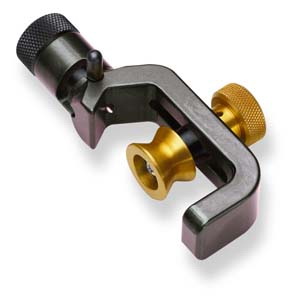

• Professional grade tool, ideal for slitting the corrugated copper, steel or aluminum armor layer on Fiber Feeder, Central Tube, Stranded Loose Tube fiber optic cables and other armored cables
• Versatile design allows jacket or shield slitting on non-fiber optic configurations as well
• Tool slits outer polyethylene jacket and armor in one operation….
• Performs longitudinal slitting and circumferential (ringing) for end stripping
• Blade rotates 90 degrees by activating blade lever, allowing easy mid-span preparation (ringing and slitting)
• Adjustable from 0.315” (8 mm) to 1.125” (28.6 mm) cable O.D.
• Adjustable blade depths to accommodate different cable coverings
• “Roller” style cable follower provides cable stability and allows for easier tool movement along the cable
• Rugged anodized aluminum and steel construction
• Replacement blade: CB 251-K

U.S Patent No: 505, 056 S
Length: 4.95 in (127.00 mm)
Weight: 9.94 ounces (284.0g)

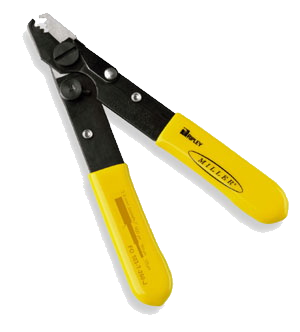

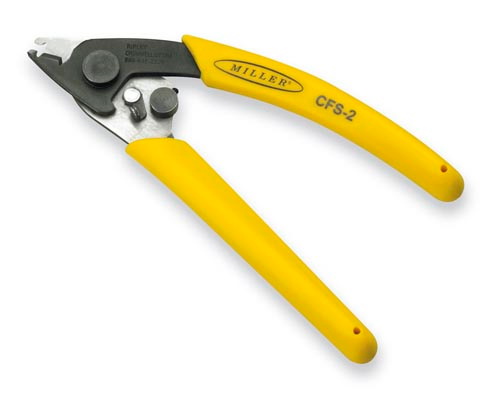

• New three-hole model performs all common fiber stripping functions in one compact tool….
• Standard 250 to 125 micron stripping
• Remove 900 tight buffer to 250 micron buffer coating
• Hole for removal of 2 to 3 mm fiber jackets
• Same consistent quality and features found in our standard FO 103-S tool
• Also available: FO 103-T-400-250 Fiber Optic Stripper for 400 micron coated PM Fiber

Length: 5.34 in (137.00 mm)
Weight: 2.49 ounces (71.0g)

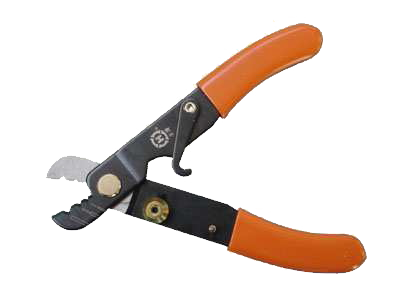

• Adjustable blades can be set for any depth to help ensure neck-free strips
• Use with twisted-pair wire, tightly wrapped stranded cables,
• CATV cable, CB antenna cable, SO, SJ, SJT, and other types of flexible power cords
• Includes three straight and one round blade

• Adjustable blades can be set for any depth to help ensure neck-free strips
• Use with twisted-pair wire, tightly wrapped stranded cables,
• CATV cable, CB antenna cable, SO, SJ, SJT, and other types of flexible power cords
• Includes three straight and one round blade

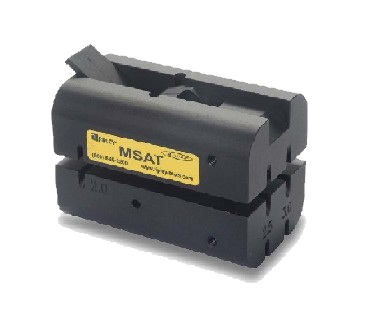

Mid-Span Access Tool

• Quickly and easily access fibers in 2, 2.5 and 3mm buffer tubes in a mid-span location without fiber damage
• All blades precisely factory mounted in tube slitting channels with no adjustment required by the installer
• Tool design incorporates buffer tube size gages on the tool body for ease of selecting proper tube slitting channel
• Convenient spring loaded lever opens and closes the tool and lever becomes flush with the top of the tool body when closed
• For use with the following diameter buffer tubes: 2.0mm 1.8-2.2 mm (0.071”- 0.086”) 2.5mm 2.3-2.8 mm (0.090”-0.110”) 3.0mm 2.8-3.2 mm (0.110”- 0.126”)
• Made in the U.S.A
• Replacement Blade: Part No: 80794 1 set (2 each) 1/16” Allen wrench included
• Part No.: 80785

Length: 2.48 in (63.50 mm)
Weight: 7.93 ounces (226.7g)

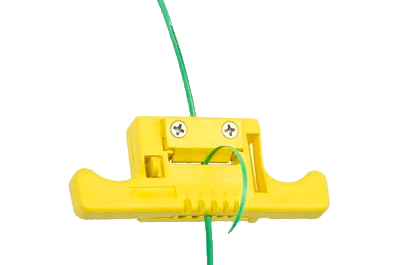

• Allows easy mid-span access to optical fibers in loose buffer tubes
• Access tube sizes from 1.9mm to 3.0mm
• Shaves precise opening to prevent fiber damage
• Sizing channels to easily determine tube size
• Locking mechanism ensures tool will remain closed through the entire shaving operation
• Made in the U.S.A.
• Part No.: 80930

Length: 3.86 in (99.00 mm)
Height: 1.482 in (38.00 mm)
Width: 0.702 in (18.00 mm)
Weight: 1.35 ounces (38.5g)

Replacement Parts: Replacement blade Part No.: 80935 (5 blades – 2 screws)

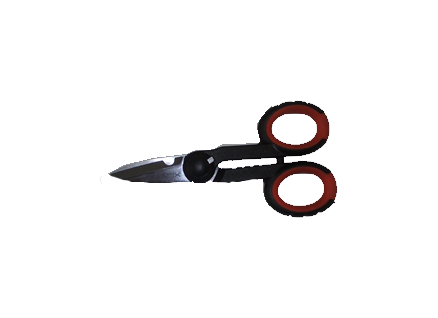

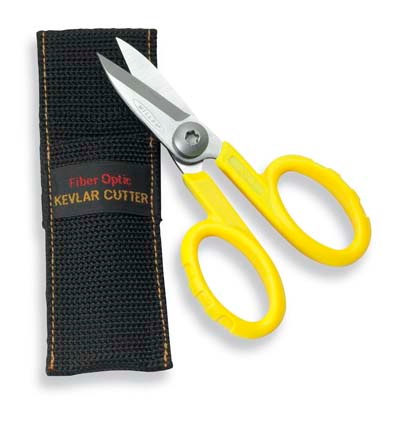

• Lightweight shears ideal for cutting Kevlar® strength members found in fiber optic cable construction
• Ergonomic molded handles provide comfort for both right and left handed users
• One micro-serrated blade reduces slippage for more positive cutting action
• Blades made from high carbon molybdenum, and vanadium steel for long life
• KS-1 available with nylon pouch with belt loop

Length: 5.46 in (140.00 mm)
Weight: 2.77 ounces (79.0g)

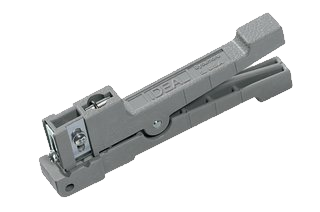

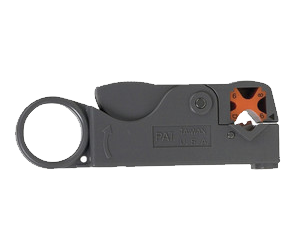

Elimina la camisa exterior de cables coaxiales
Trabaja con 4 diámetros de cable diferente
para cable RG58/RG59/RG62 y RG6

Optical Cable Jacket Slitter is an efficient and Indispensable toll for
Fiber Optic Cable Termination
It easily Slits the PVC cable jacket int two haves before crimping, in both field
and plant application. Time is saved and consistency is resulted with
this precise and innovative tool
Cable can processed
1.5 a 1.9 mm, 2.0 a 2.4 mm, 2.5 a 2.9 mm. 3.0 a 3.3 mm

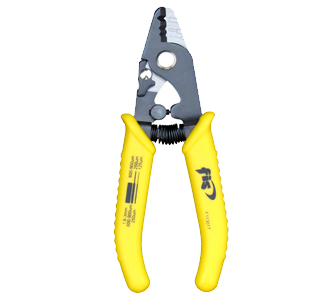

Three-hole mode performs all common fiber stripper Functions in one Compact
This Optic Fiber Stripps the 1.6-3.0 mm Fiber Jacket Down to the 600-900 Micro

Perfect tool for cuting Jackets from a Variety of Optic Fiber Cable
V Opening in Blade

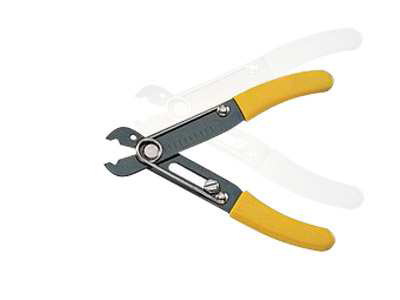

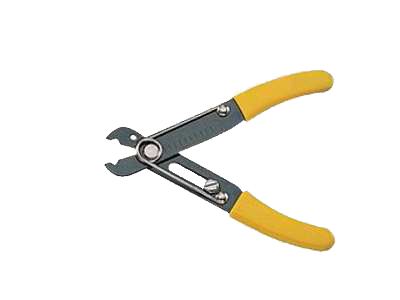

Adjust Blades with a Screwdriver for Various Size Cables
Economical toll for multiple cables
Work with standard 30-10awg(0,05 – 6mm) wire in addition to Optic Fiber Cable
Presentación: Bolsa con 100 hojas

• Precision Blades for Clean, Consistent Strips
• Ergonomically Designed
• High Quality
• Affordably Priced
